Industrial Air Filtration

CLARIVENT^®

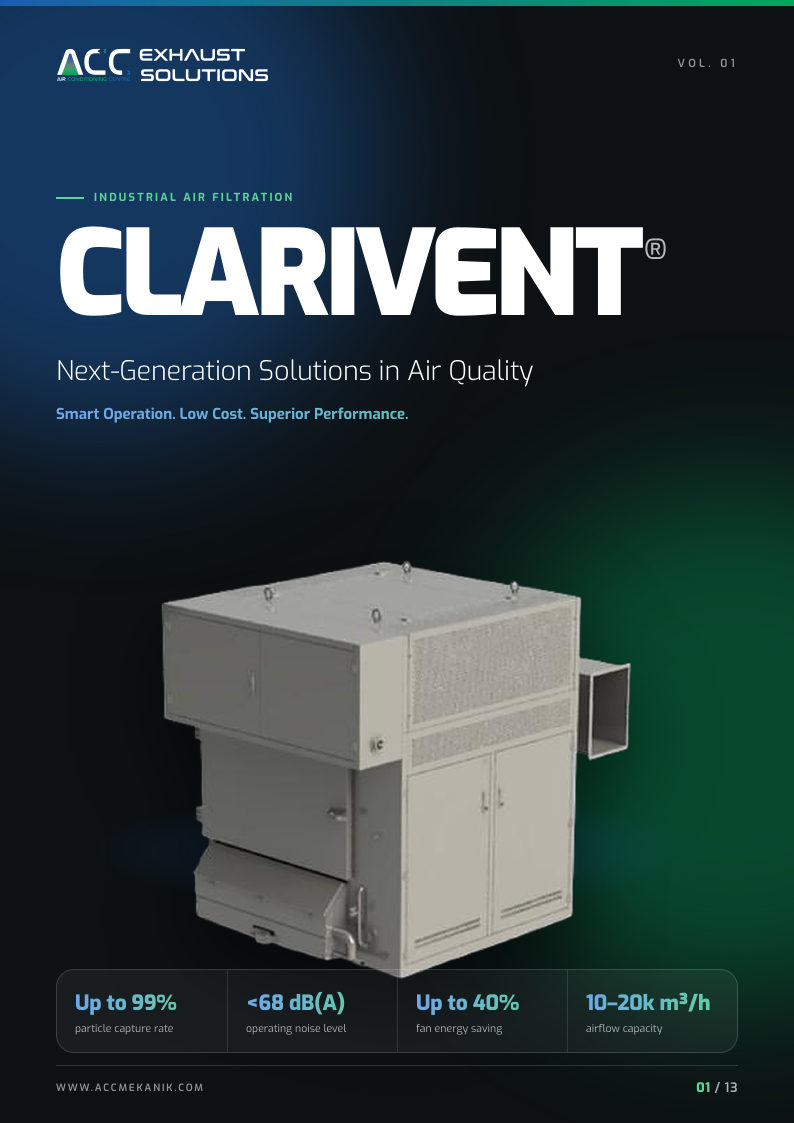

Next-Generation Solutions in Air Quality

Smart Operation. Low Cost. Superior Performance.

Download Catalogue (PDF) Preview Catalogue

Up to 99%particle capture rate

<68 dB(A)operating noise level

Up to 40%fan energy saving

10–20k m³/hairflow capacity

Airflow

Product Overview

Meet CLARIVENT®

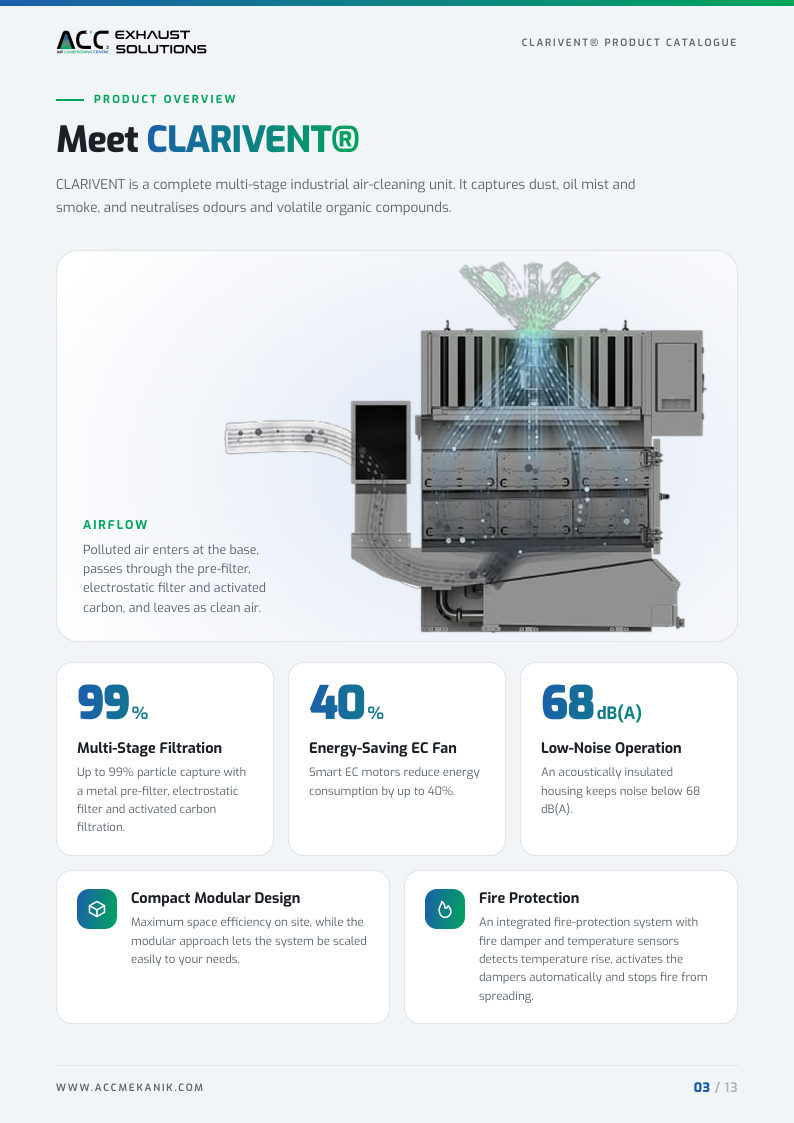

CLARIVENT is a complete multi-stage industrial air-cleaning unit. It captures dust, oil mist and smoke, and neutralises odours and volatile organic compounds.

Polluted air enters at the base, passes through the pre-filter, electrostatic filter and activated carbon, and leaves as clean air.

Compact Modular DesignMaximum space efficiency on site, while the modular approach lets the system be scaled easily to your needs.

Fire ProtectionAn integrated fire-protection system with fire damper and temperature sensors detects temperature rise, activates the dampers automatically and stops fire from spreading.

99%

Multi-Stage Filtration

Up to 99% particle capture with a metal pre-filter, electrostatic filter and activated carbon filtration.

40%

Energy-Saving EC Fan

Smart EC motors reduce energy consumption by up to 40%.

68dB(A)

Low-Noise Operation

An acoustically insulated housing keeps noise below 68 dB(A).

Filtration Technologies

Three stages, one system.

Metal pre-filter, electrostatic filter (ESP) and activated carbon: each stage targets a different contaminant.

Stage 01

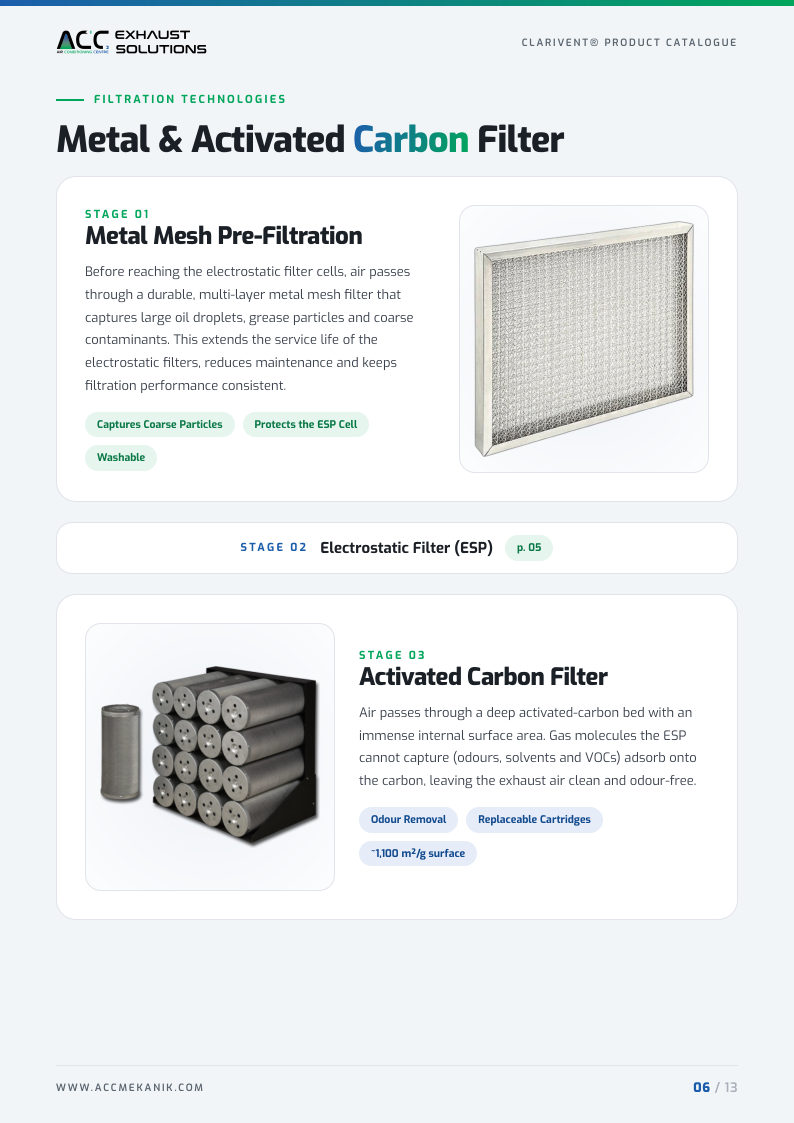

Metal Mesh Pre-Filtration

Before reaching the electrostatic filter cells, air passes through a durable, multi-layer metal mesh filter that captures large oil droplets, grease particles and coarse contaminants. This extends the service life of the electrostatic filters, reduces maintenance and keeps filtration performance consistent.

Captures Coarse ParticlesProtects the ESP CellWashable

Stage 02

Electrostatic Filter (ESP)

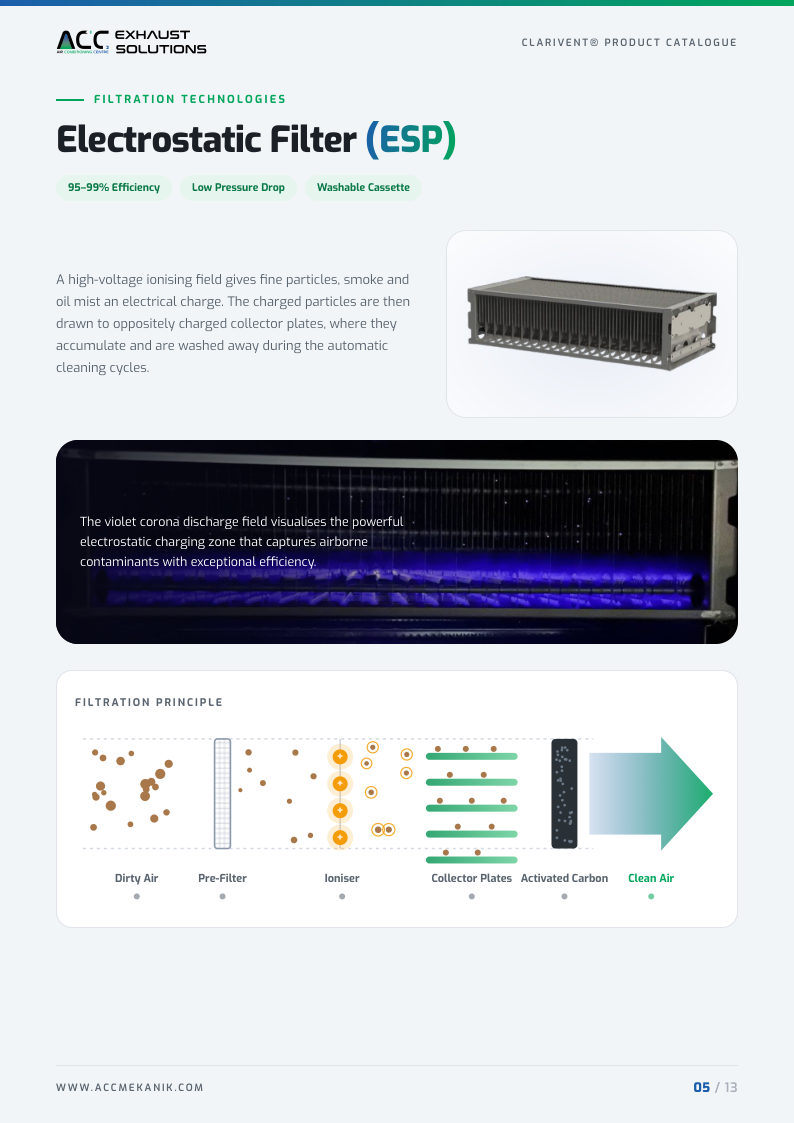

A high-voltage ionising field gives fine particles, smoke and oil mist an electrical charge. The charged particles are then drawn to oppositely charged collector plates, where they accumulate and are washed away during the automatic cleaning cycles.

95–99% EfficiencyLow Pressure DropWashable Cassette

Stage 03

Activated Carbon Filter

Air passes through a deep activated-carbon bed with an immense internal surface area. Gas molecules the ESP cannot capture (odours, solvents and VOCs) adsorb onto the carbon, leaving the exhaust air clean and odour-free.

Odour RemovalReplaceable Cartridges~1,100 m²/g surface

The violet corona discharge field visualises the powerful electrostatic charging zone that captures airborne contaminants with exceptional efficiency.

Filtration principle

Product Overview

Patented Self-Washing System

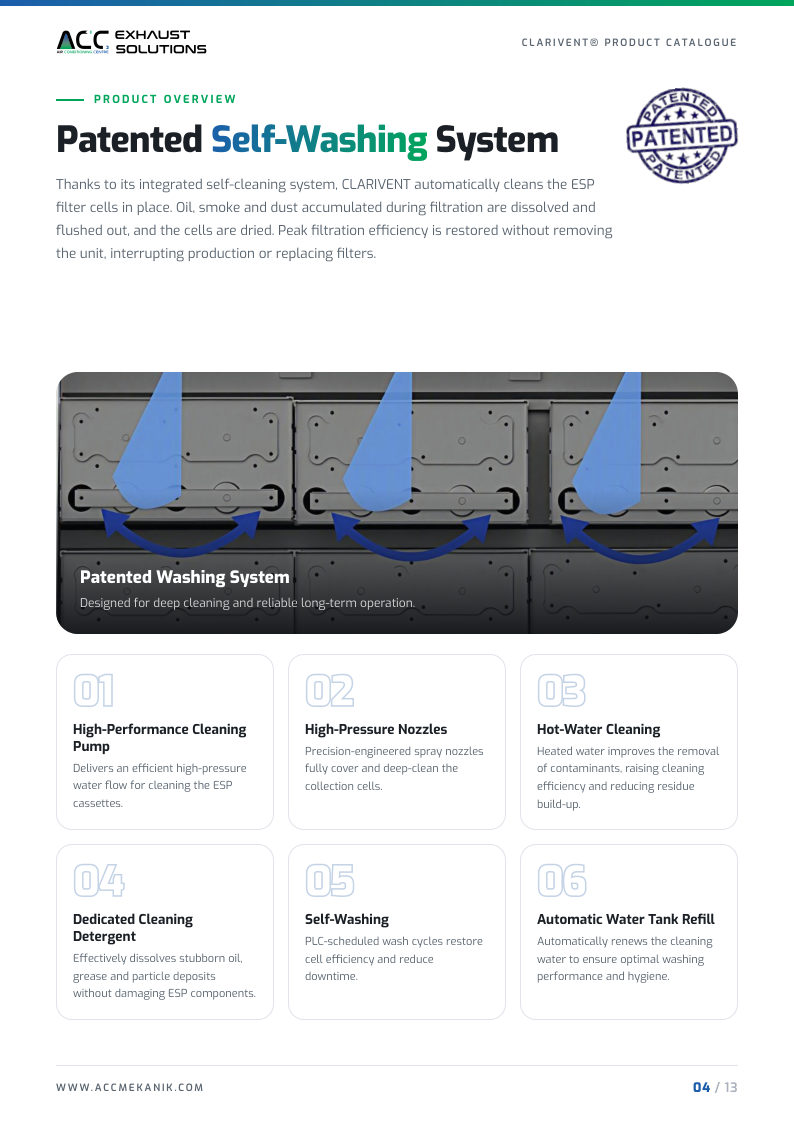

Thanks to its integrated self-cleaning system, CLARIVENT automatically cleans the ESP filter cells in place. Oil, smoke and dust accumulated during filtration are dissolved and flushed out, and the cells are dried. Peak filtration efficiency is restored without removing the unit, interrupting production or replacing filters.

Patented Washing SystemDesigned for deep cleaning and reliable long-term operation.

High-Performance Cleaning Pump

Delivers an efficient high-pressure water flow for cleaning the ESP cassettes.

High-Pressure Nozzles

Precision-engineered spray nozzles fully cover and deep-clean the collection cells.

Hot-Water Cleaning

Heated water improves the removal of contaminants, raising cleaning efficiency and reducing residue build-up.

Dedicated Cleaning Detergent

Effectively dissolves stubborn oil, grease and particle deposits without damaging ESP components.

Self-Washing

PLC-scheduled wash cycles restore cell efficiency and reduce downtime.

Automatic Water Tank Refill

Automatically renews the cleaning water to ensure optimal washing performance and hygiene.

Fire Protection

Fire Protection System

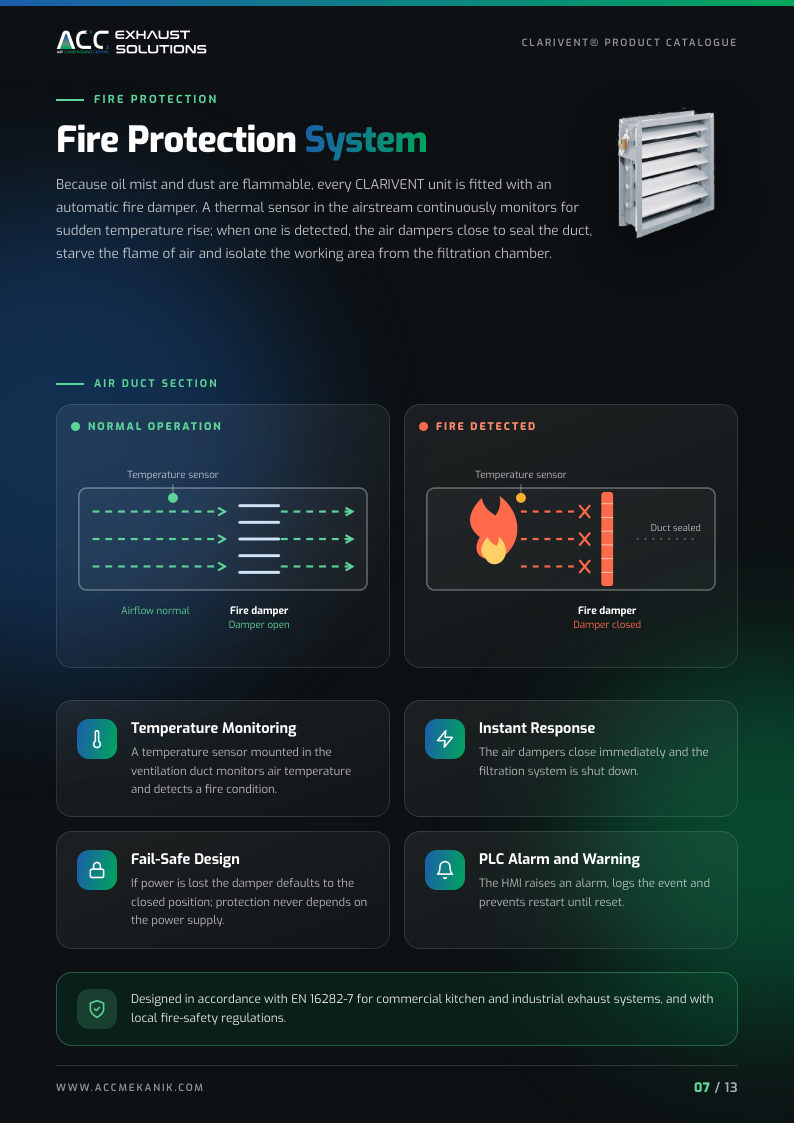

Because oil mist and dust are flammable, every CLARIVENT unit is fitted with an automatic fire damper. A thermal sensor in the airstream continuously monitors for sudden temperature rise; when one is detected, the air dampers close to seal the duct, starve the flame of air and isolate the working area from the filtration chamber.

AIR DUCT SECTION

Normal Operation

Fire Detected

Temperature Monitoring

A temperature sensor mounted in the ventilation duct monitors air temperature and detects a fire condition.

Instant Response

The air dampers close immediately and the filtration system is shut down.

Fail-Safe Design

If power is lost the damper defaults to the closed position; protection never depends on the power supply.

PLC Alarm and Warning

The HMI raises an alarm, logs the event and prevents restart until reset.

Designed in accordance with EN 16282-7 for commercial kitchen and industrial exhaust systems, and with local fire-safety regulations.

System Diagram

Inside CLARIVENT

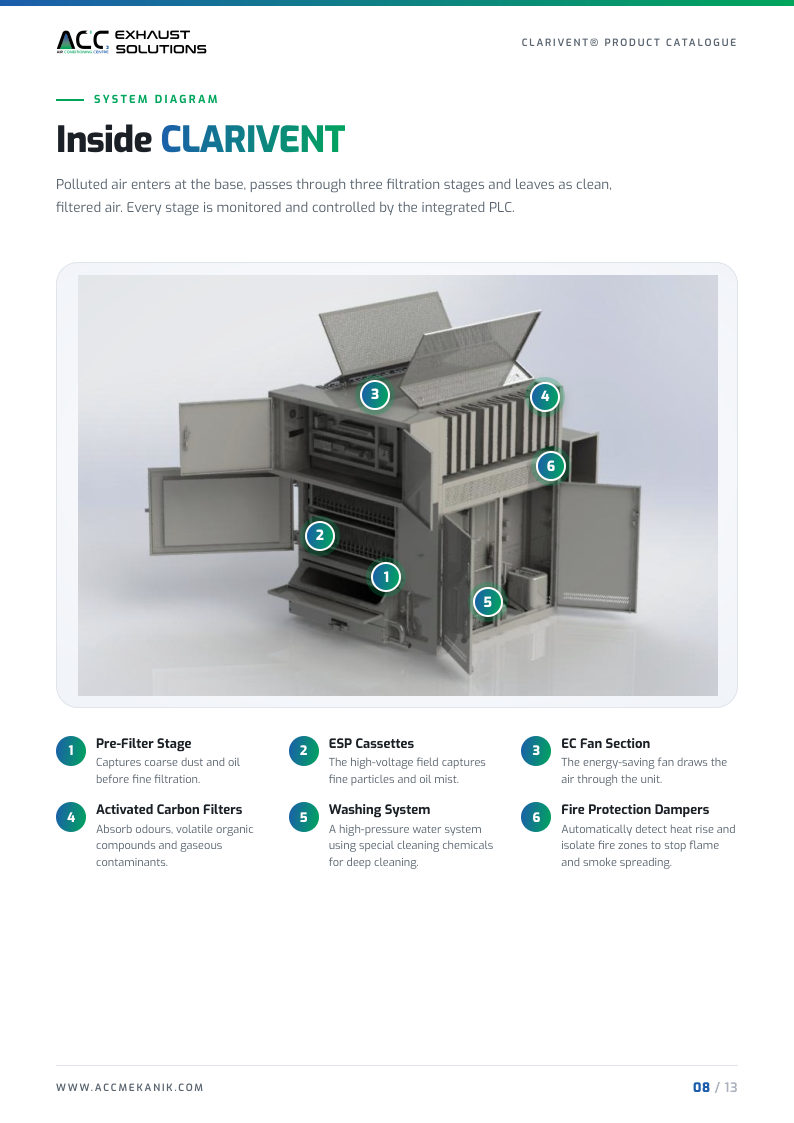

Polluted air enters at the base, passes through three filtration stages and leaves as clean, filtered air. Every stage is monitored and controlled by the integrated PLC.

1
Pre-Filter StageCaptures coarse dust and oil before fine filtration.
2
ESP CassettesThe high-voltage field captures fine particles and oil mist.
3
EC Fan SectionThe energy-saving fan draws the air through the unit.
4
Activated Carbon FiltersAbsorb odours, volatile organic compounds and gaseous contaminants.
5
Washing SystemA high-pressure water system using special cleaning chemicals for deep cleaning.
6
Fire Protection DampersAutomatically detect heat rise and isolate fire zones to stop flame and smoke spreading.

Tap the numbers or hover over them.

Control & Automation

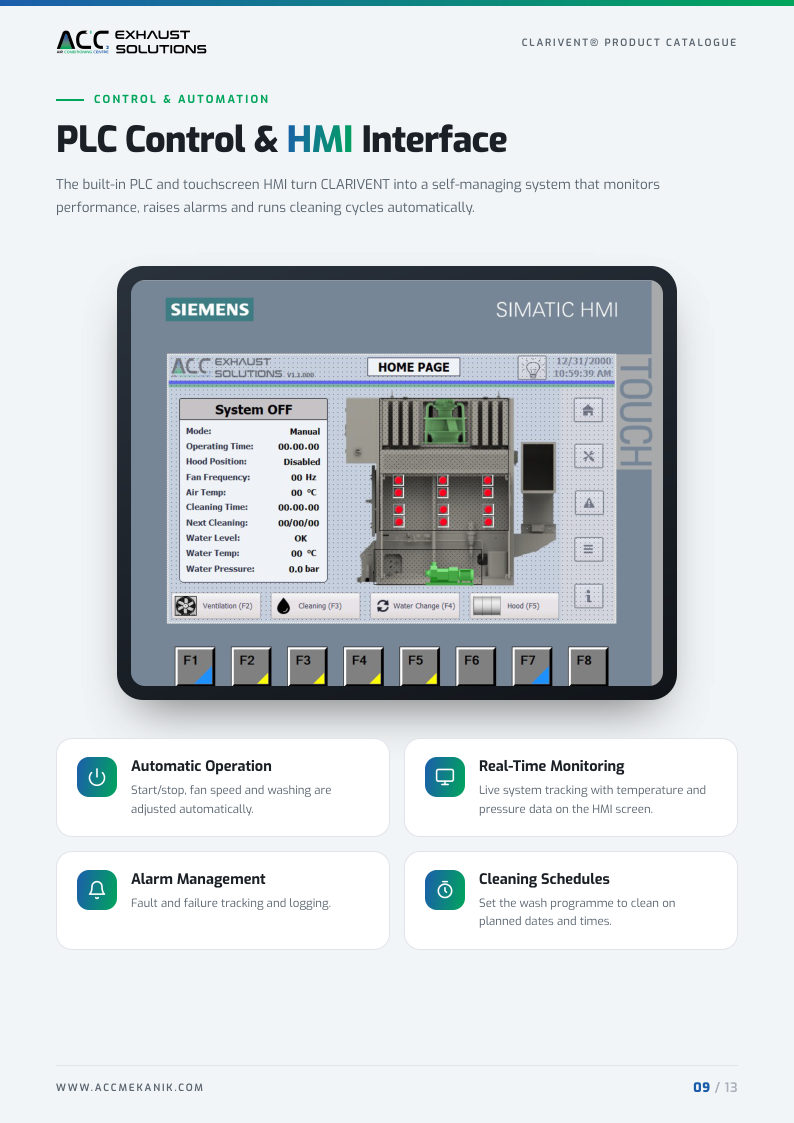

PLC Control & HMI Interface

The built-in PLC and touchscreen HMI turn CLARIVENT into a self-managing system that monitors performance, raises alarms and runs cleaning cycles automatically.

Automatic OperationStart/stop, fan speed and washing are adjusted automatically.

Real-Time MonitoringLive system tracking with temperature and pressure data on the HMI screen.

Alarm ManagementFault and failure tracking and logging.

Cleaning SchedulesSet the wash programme to clean on planned dates and times.

Model Specifications

Technical Data & Model Options

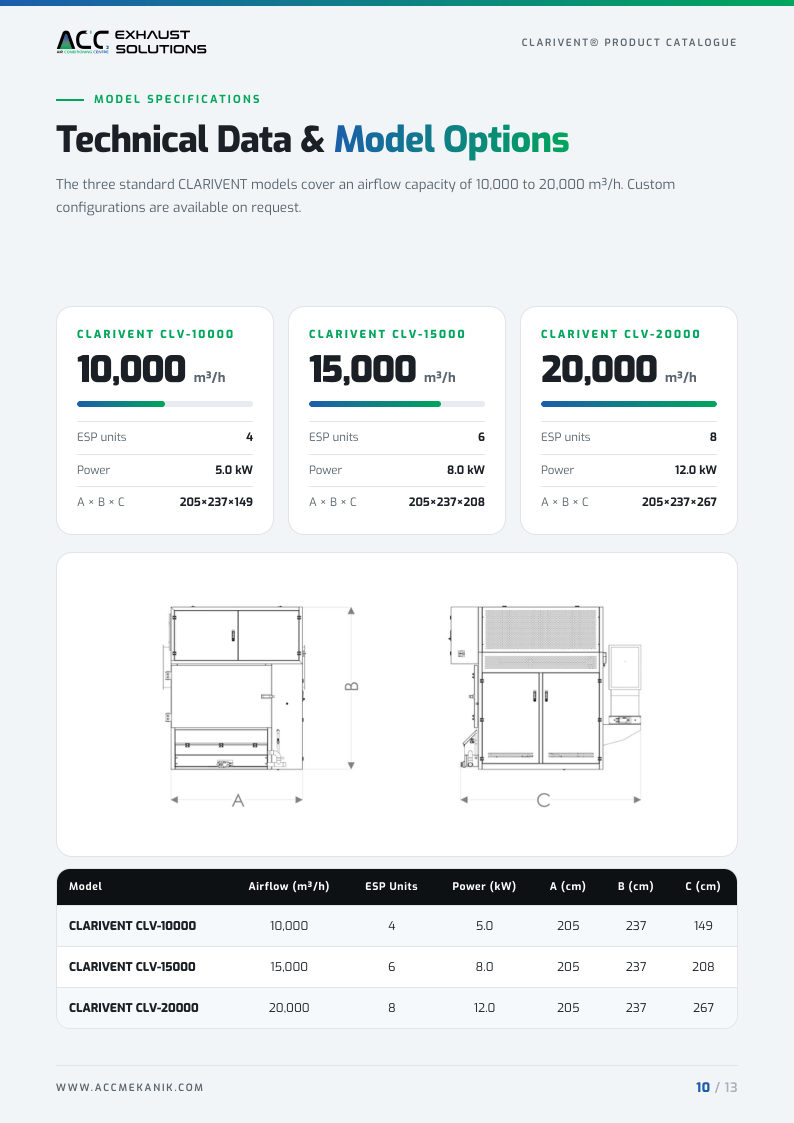

The three standard CLARIVENT models cover an airflow capacity of 10,000 to 20,000 m³/h. Custom configurations are available on request.

CLARIVENT CLV-10000

10,000m³/h

Airflow

ESP units4

Power5.0kW

Dimensions A × B × C205 × 237 × 149cm

Model	Airflow (m³/h)	ESP Units	Power (kW)	A (cm)	B (cm)	C (cm)
CLARIVENT CLV-10000	10,000	4	5.0	205	237	149
CLARIVENT CLV-15000	15,000	6	8.0	205	237	208
CLARIVENT CLV-20000	20,000	8	12.0	205	237	267

Investment & ROI

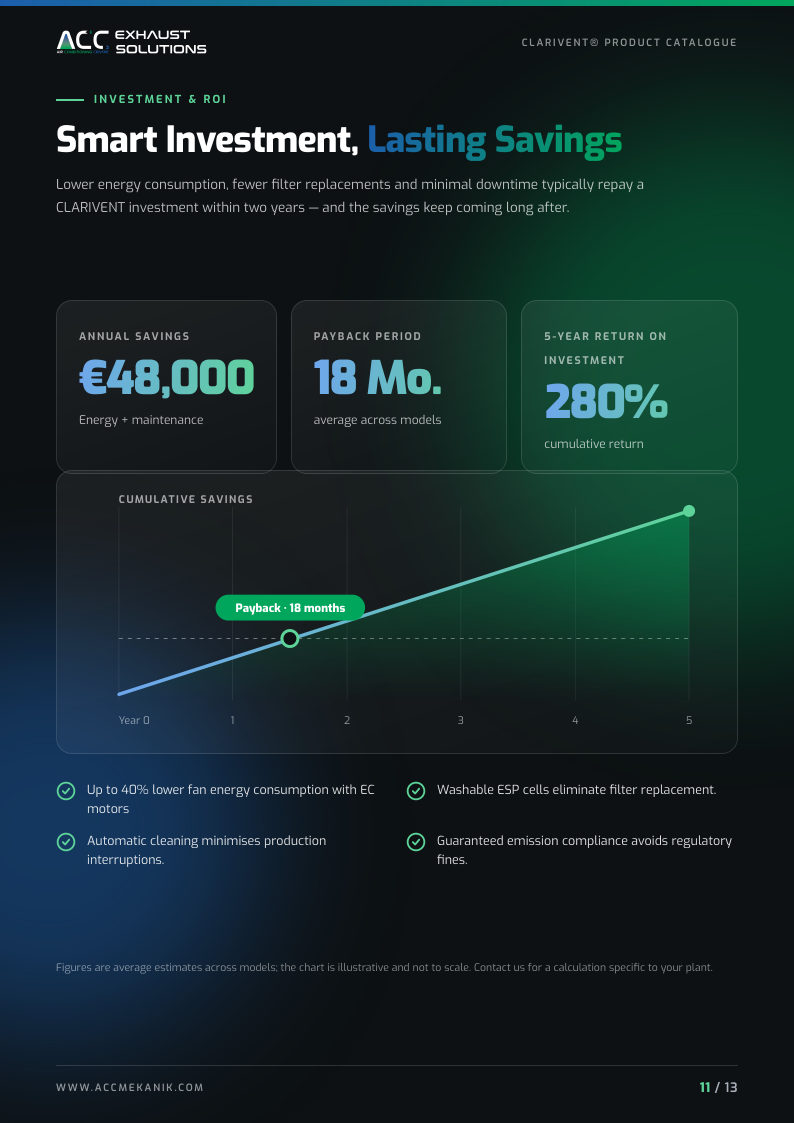

Smart Investment, Lasting Savings

Lower energy consumption, fewer filter replacements and minimal downtime typically repay a CLARIVENT investment within two years — and the savings keep coming long after.

ANNUAL SAVINGS

€48,000

Energy + maintenance

PAYBACK PERIOD

18 Mo.

average across models

5-YEAR RETURN ON INVESTMENT

280%

cumulative return

Up to 40% lower fan energy consumption with EC motors

Washable ESP cells eliminate filter replacement.

Automatic cleaning minimises production interruptions.

Guaranteed emission compliance avoids regulatory fines.

Figures are average estimates across models; the chart is illustrative and not to scale. Contact us for a calculation specific to your plant.

Certificates

Quality & Machinery Certificates

Shaping today and tomorrow with solutions that make a difference in industrial air quality.

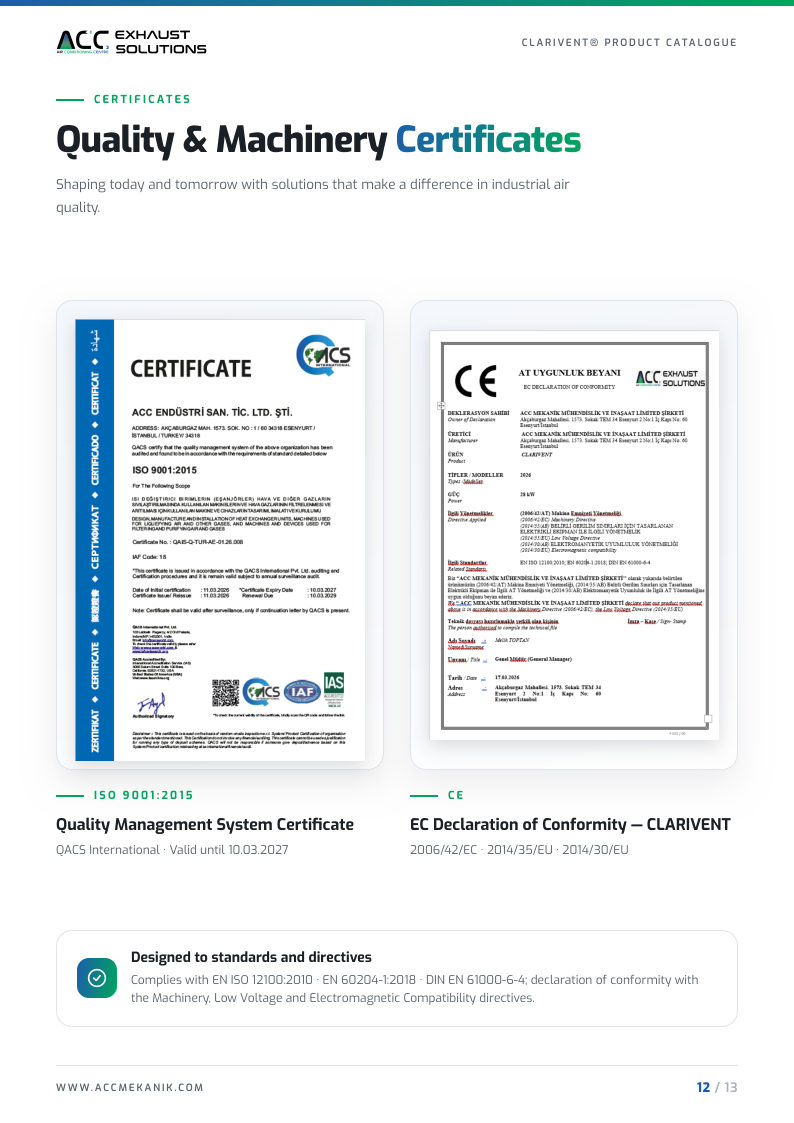

ISO 9001:2015 — Quality Management System Certificate — ISO 9001:2015Quality Management System CertificateQACS International · Valid until 10.03.2027

CE — EC Declaration of Conformity — CLARIVENT — CEEC Declaration of Conformity — CLARIVENT2006/42/EC · 2014/35/EU · 2014/30/EU

Designed to standards and directives
Complies with EN ISO 12100:2010 · EN 60204-1:2018 · DIN EN 61000-6-4; declaration of conformity with the Machinery, Low Voltage and Electromagnetic Compatibility directives.
